• Minimum Illumination: Color: 0.0005 Lux @ (ƒ/1.0, AGC On); 0 Lux with White Light
• Up to 2560 × 1440 @ 30 fps
• Accurate Human/Vehicle Target Classification/Alarm, and Face Capture Based on Deep Learning Hardware and Algorithm
• Linked Audible and Visual Alarm, Built-in Microphone and Speaker
• 24/7 Color Imaging with Low Power Consumption. Up to 30 m White Light Distance
• IP66; PoE

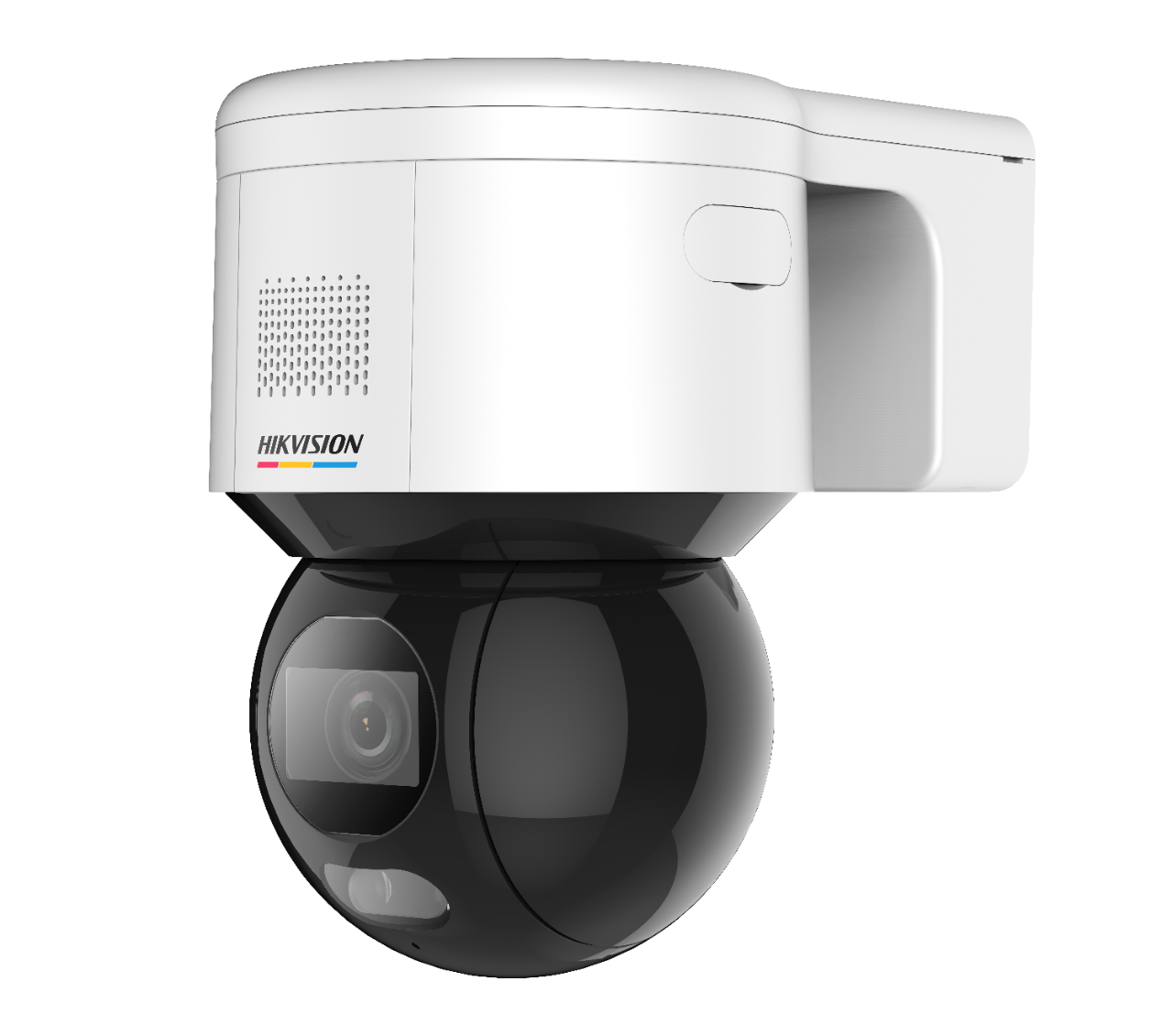

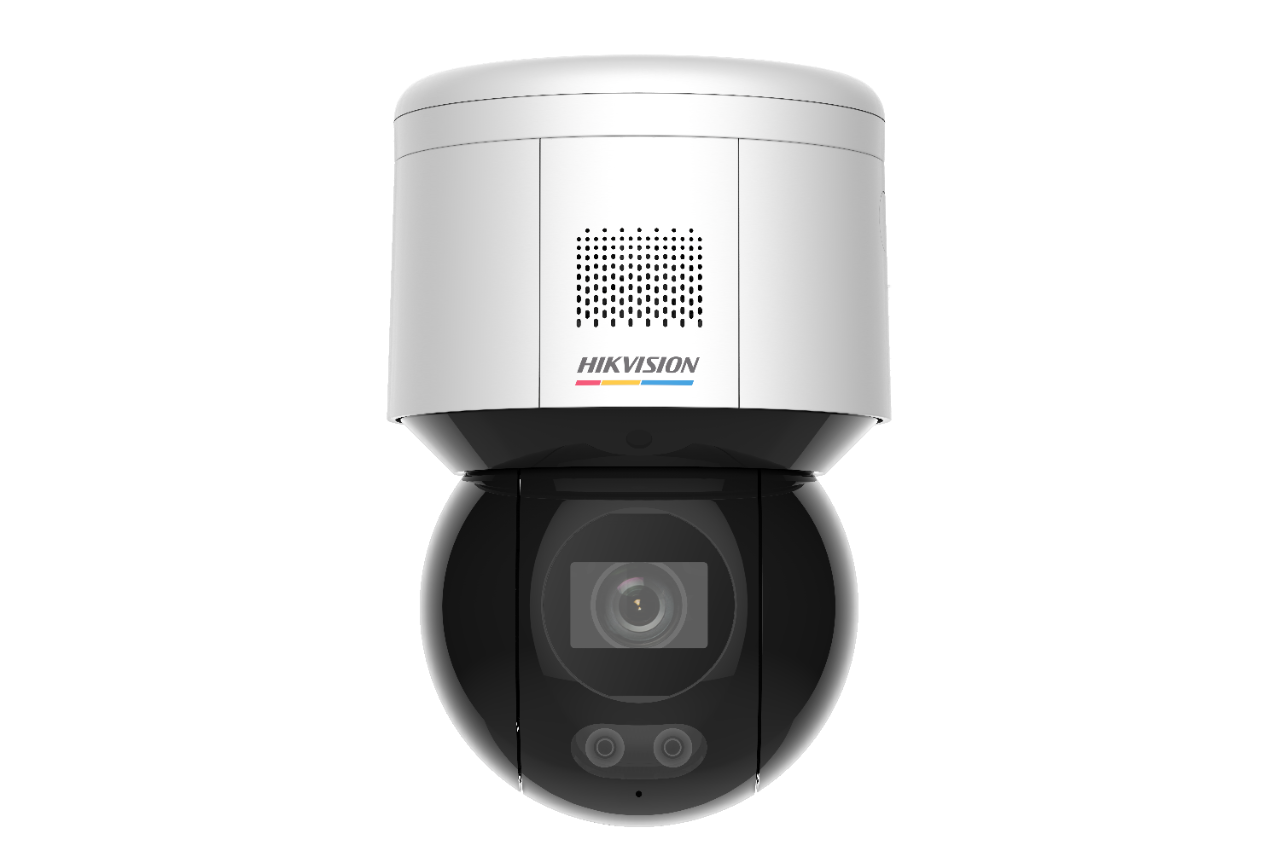

Hikvision DS-2DE3A400BW-DE(F1)(S5) Camera Module

• Image Sensor1/1.8＂ progressive scan CMOS
• Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light
• Shutter Speed1/1 to 1/30,000 s
• Day & Night24/7 colorful imaging
• Day/Night Switch day, night, auto, scheduled-switch
• BLCyes
• WDR120 dB WDR
• Heyes
• 3D DNRyes
• Defogyes
• eyes
• Regional Exposures
• Image Settingssaturation;brightness;contrast;sharpness
• Image Parameters Switches
• White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp ;Locked WB
• Digital Zoom16x
• Privacy Maskup to 24 masks (8 masks for each scene)
• SNR＞52dB
• General Functionmirror, password protection, watermark, IP address filter

Hikvision DS-2DE3A400BW-DE(F1)(S5) Lens

• Focal Length4 mm
• FOV

  Horizontal field of view: 88.7°

  Vertical field of view: 46.5°

  Diagonal field of view: 105.0°

• ApertureF1.0

• Illuminator
• White Light Distance30 m

Hikvision DS-2DE3A400BW-DE(F1)(S5) PTZ

• Movement Range (Pan)350°
• Movement Range (Tilt)0° to 90°
• Pan Speedpan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s
• Tilt Speedtilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
• Proportional Zoomyes
• Presets300
• Power-Off Memories
• Park Actionpreset
• 3D Positioningyes
• PTZ Status Displayyes
• Preset Freezingyes
• Scheduled Taskpreset;dome reboot;dome adjust;aux output

Hikvision DS-2DE3A400BW-DE(F1)(S5) Video

• Max. Resolution2560 × 1440
• Stream Typemain stream;sub-stream;third stream
• Main Stream

  50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720);

  60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);

  60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

• Third Stream

  50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);

  60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

• Video CompressionH.265;H.264;MJPEG
• SVCyes
• Reyes

Hikvision DS-2DE3A400BW-DE(F1)(S5) Audio

• Audio CompressionG.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;AAC;PCM
• Environment Noise Filteringyes

• Smart Features
• Face Captures
• Basic Eventmotion detection;video tampering alarm;alarm input;alarm output;exception
• Smart Eventintrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection;audio exception detection
• Smart RecordANR; Dual-VCA
• Alarm Linkagepreset; memory card video recording; alarm output; sending email; notify surveillance center; upload to FTP; audible warning; white light flashing
• Smart encoding.265+; H.264+; low bit rate; ROI; SVC
• Warning And Alertwhite light and audible warning

Hikvision DS-2DE3A400BW-DE(F1)(S5) Network

• Network StorageNAS (NFS, SMB/ CIFS)
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
• APIISAPI; Hikvision SDK; Hik-Connect; ISUP; Open Network Video Interface (Profile S, Profile G, Profile T)
• Simultaneous Live view up to 20 channels
• User/host up to 32 users. 3 levels: Administrator, Operator, and User
• Security MeasuresAuthenticated username and password; MAC address binding; HTTPS encryption;802.1X authenticated access; IP address filter
• Web browser 10+, Chrome 57+, Firefox 52+, Safari 12+

Hikvision DS-2DE3A400BW-DE(F1)(S5) Interface

• Power Output12 VDC; < 60 mA
• Communication Interface1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at)
• On-Board StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 512 GB
• Alarm Input1 alarm input
• Alarm Output1 alarm output
• Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
• Audio Output1 built-in speaker, 1 audio output, line level, impedance: 600 Ω
• RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

Hikvision DS-2DE3A400BW-DE(F1)(S5) General

• Power

  12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A

  Max. 14 W (including max. 4 W for white light)

• Operating Conditionstemperature: -30℃ to 65℃ (-22°F to 149°F);humidity: ≤ 90%
• Resetyes
• Demistyes
• Dimensions179.3 mm × 120 mm × 182 mm (7.06″ × 4.72″ × 7.71″)
• Approx. 1.125 kg (2.48 lb.)

Hikvision DS-2DE3A400BW-DE(F1)(S5) Approval

• ProtectionIP66; 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
